SQUARE
일반조명
Total 8건

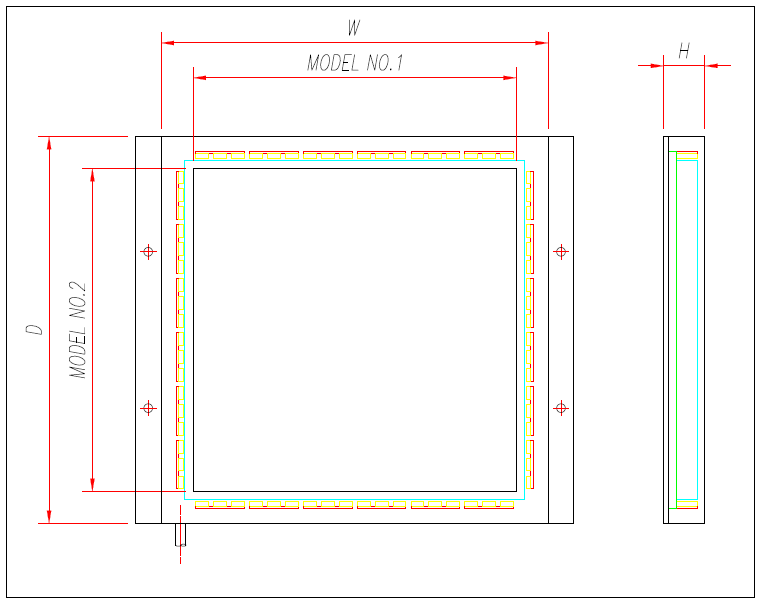

| No. | MODEL | Color Option Power Consumption(W) | Dimensions | Voltage option | Nember of LEDs | etc |
|---|---|---|---|---|---|---|
| 1 | JL-F-FD-126x126-CL | W / R / B / G 17.3 / 8.7 / 17.3 / 17.3 |
W 151mm x D 151mm x H 16mm | 12V / 24V | 72EA | PDF DOWN DWG DOWN |
| 2 | JL-F-FD-150x60-CL | W / R / B / G 10.1 / 5.1 / 10.1 / 10.1 |
W 200mm x D 90mm x H 15mm | 12V / 24V | 42EA | PDF DOWN DWG DOWN |
| 3 | JL-F-FD-200x200-CL | W / B / G 20.2 / 20.2 / 20.2 |
W 250mm x D 230mm x H 15mm | 12V | 84EA | PDF DOWN DWG DOWN |
| 4 | JL-F-FD-270x210-CL | W / B / G 23.1 / 23.1 / 23.1 |
W 320mm x D 240mm x H 15mm | 12V | 96EA | PDF DOWN DWG DOWN |
| 5 | JL-F-FD-350x250-CL | W / R / B / G 28.8 / 14.4 / 28.8 / 28.8 |
W 400mm x D 280mm x H 15mm | 12V / 24V | 120EA | PDF DOWN DWG DOWN |
| 6 | JL-F-FD-420x420-CL | W / R / B / G 40.4 / 20.2 / 40.4 / 40.4 |
W 470mm x D 450mm x H 15mm | 12V / 24V | 168EA | PDF DOWN DWG DOWN |
| 7 | JL-F-FD-460x170-CL | W / R / B / G 43.2 / 21.6 / 43.2 / 43.2 |
W 490mm x D 211mm x H 15mm | 12V / 24V | 180EA | PDF DOWN DWG DOWN |
| 8 | JL-F-FD-900x250-CL | W / R / B / G 54.8 / 27.4 / 54.8 / 54.8 |
W 946mm x D 316mm x H 20mm | 12V / 24V | 228EA | PDF DOWN DWG DOWN |
