SQUARE
일반조명
Total 11건
| No. | MODEL | Color Option Power Consumption(W) | Dimensions | Voltage option | Nember of LEDs | etc |
|---|---|---|---|---|---|---|
| 1 | JL-D-B-215x215-CL | W / R / B / G 23 / 11.5 / 23 / 23 |
W 215mm x D 215mm x H 110mm | 12V | 96EA | PDF DOWN DWG DOWN |
| 2 | JL-D-B-275x215-CL | W / R / B / G 40.4 / 20.2 / 40.4 / 40.4 |
W 275mm x D 215mm x H 110mm | 12V / 24V | 168EA | PDF DOWN DWG DOWN |
| 3 | JL-D-R-54x24-3P | W / R / B / G 4.4 / 2.2 / 4.4 / 4.4 |

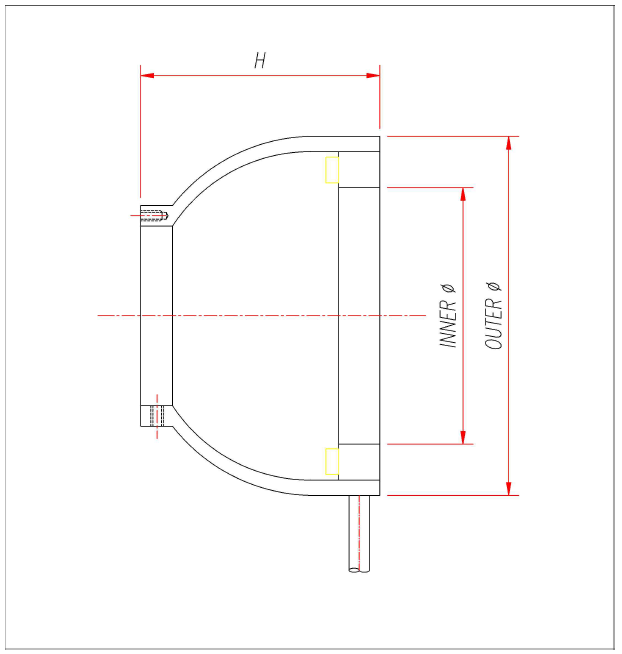

outer Ø54, inner Ø24, height 44mm | 12V | 54EA | PDF DOWN DWG DOWN |
| 4 | JL-D-R-60x30-3P | W / R / B / G 6.3 / 3.2 / 6.3 / 6.3 |
outer Ø60, inner Ø30, height 44mm | 12V | 78EA | PDF DOWN DWG DOWN |
| 5 | JL-D-R-70x50-CL | W / B / G 5.1 / 5.1 / 5.1 |
outer Ø70, inner Ø50, height 46.5mm | 12V | 21EA | PDF DOWN DWG DOWN |
| 6 | JL-D-R-80x50-3P | W / R / B / G 6.3 / 3.2 / 6.3 / 6.3 |
outer Ø80, inner Ø50, height 61mm | 12V | 78EA | PDF DOWN DWG DOWN |
| 7 | JL-D-R-97x77-CL | W / R / B / G 7.2 / 3.6 / 7.2 / 7.2 |
outer Ø97, inner Ø77, height 64mm | 12V | 30EA | PDF DOWN DWG DOWN |
| 8 | JL-D-R-140x98-CL | W / R / B / G 18.8 / 9.4 / 18.8 / 18.8 |
outer Ø140, inner Ø98, height 83.8mm | 12V | 78EA | PDF DOWN DWG DOWN |
| 9 | JL-D-R-192x150-CL | W / R / B / G 20.9 / 10.5 / 20.9 / 20.9 |
outer Ø192, inner Ø150, height 112.5mm | 12V | 116EA | PDF DOWN DWG DOWN |
| 10 | JL-D-R-232x190-CL | W / R / B / G 28.8 / 14.4 / 28.8 /28.8 |
outer Ø232, inner Ø190, height 130mm | 12V | 120EA | PDF DOWN DWG DOWN |
| 11 | JL-D-R-292x250-CS | W / R / B / G 57.6 / 28.8 / 57.6 / 57.6 |
outer Ø292, inner Ø250, height 170mm | 24V | 96EA | PDF DOWN DWG DOWN |
