SQUARE
일반조명
Total 5건

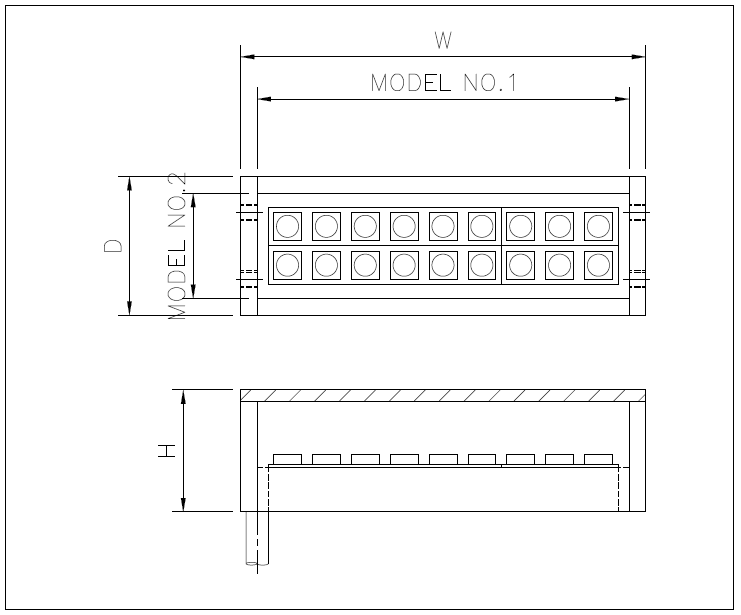

| No. | MODEL | Color Option Power Consumption(W) | Dimensions | Voltage option | Nember of LEDs | etc |
|---|---|---|---|---|---|---|
| 1 | JL-D-F-25x25-CR | W / R / B / G 2.4 / 1.2 / 2.4 / 2.4 |
W 68mm x D 68mm x H 10mm | 12V/24V | 24EA | PDF DOWN DWG DOWN |
| 2 | JL-D-F-50x50-CR | W / R / B / G 4.8 / 2.4 / 4.8 / 4.8 |
W 93mm x D 93mm x H 10mm | 12V/24V | 48EA | PDF DOWN DWG DOWN |
| 3 | JL-D-F-100x100-CR | W / R / B / G 9.6 / 4.8 / 9.6 / 9.6 |
W 143mm x D 143mm x H 10mm | 12V/24V | 96EA | PDF DOWN DWG DOWN |
| 4 | JL-D-F-150x150-CR | W / R / B / G 14.4 / 7.2 / 14.4 / 14.4 |
W 193mm x D 193mm x H 10mm | 12V/24V | 144EA | PDF DOWN DWG DOWN |
| 5 | JL-D-F-200x200-CR | W / R / B / G 19.2 / 9.6 / 19.2 / 19.2 |
W 243mm x D 243mm x H 10mm | 12V/24V | 192EA | PDF DOWN DWG DOWN |
